Swimming Pool Filter Pump Easy Use Integrative Filtration System

The filter system enhances air and water quality by trapping impurities, ensuring a healthier environment. It promotes longevity for appliances, reduces maintenance costs, and fosters sustainability through efficient resource use.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Details

Swimming pool filter pump easy use integrative filtration systerm

Feture:

* Max operating pressure 350 KPA
* Max temperature of 43°C(109°F).
* Universal standard of union connection provided.
* Suggested size of media:0.5-1.2mm.

*Optional Connected Port Multiport Valve

* Metric or imperial quick connect unions.

* High grade quality stainless steel components.

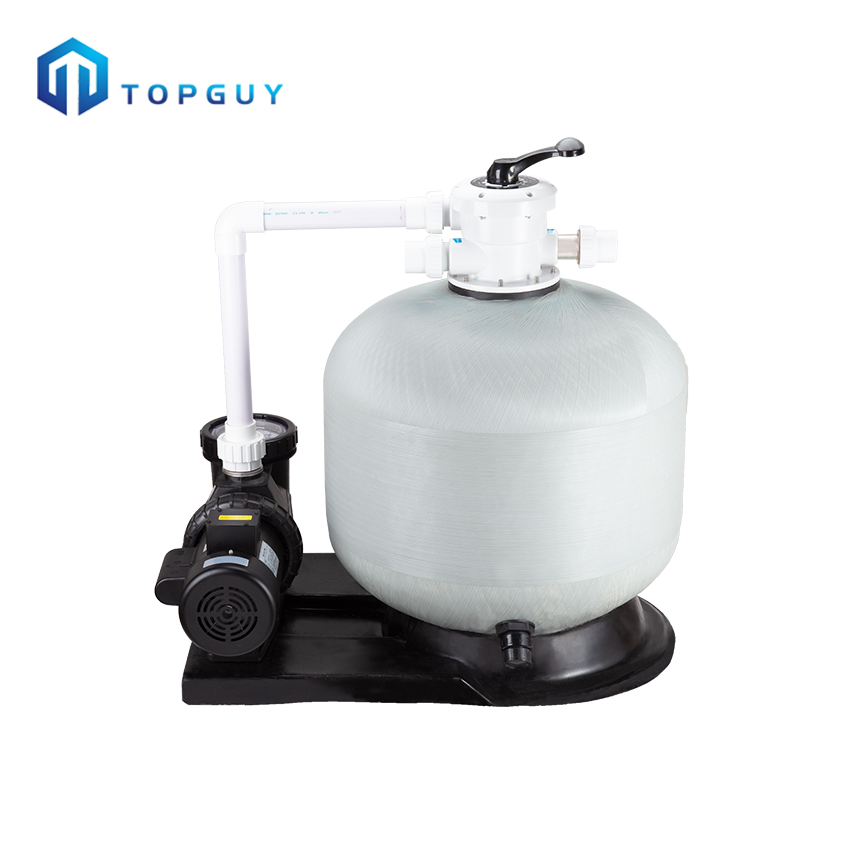

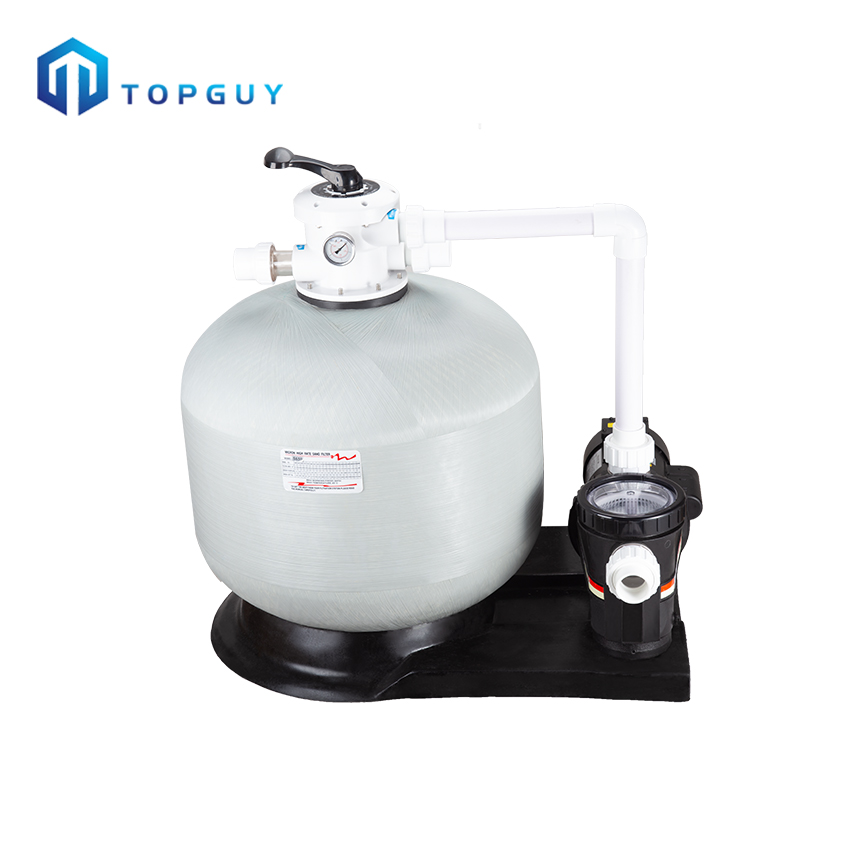

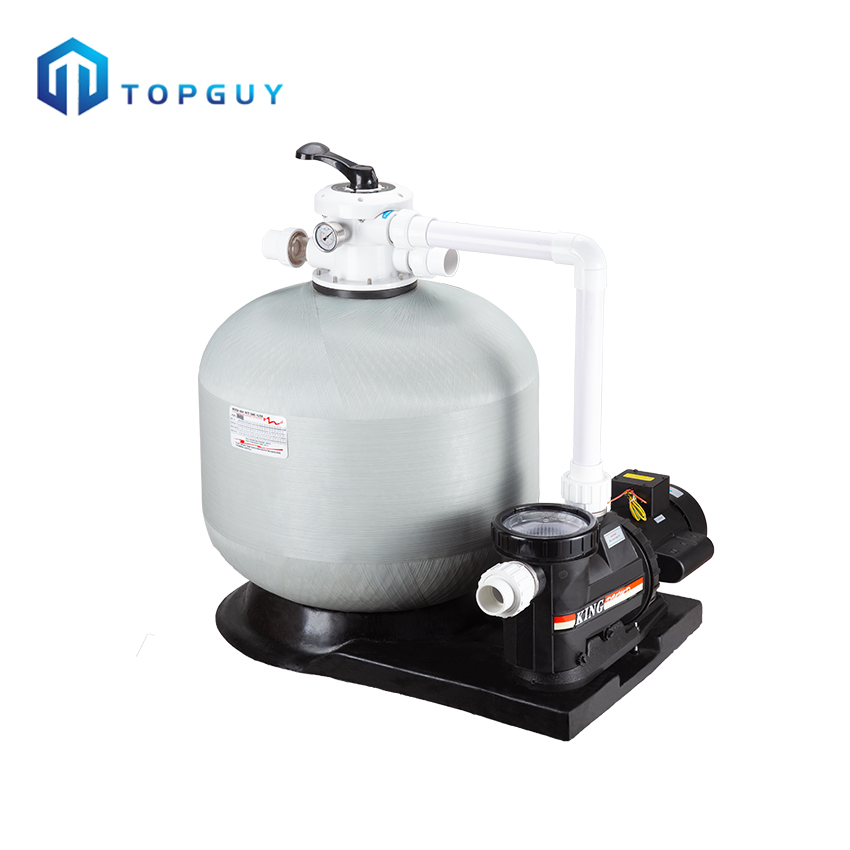

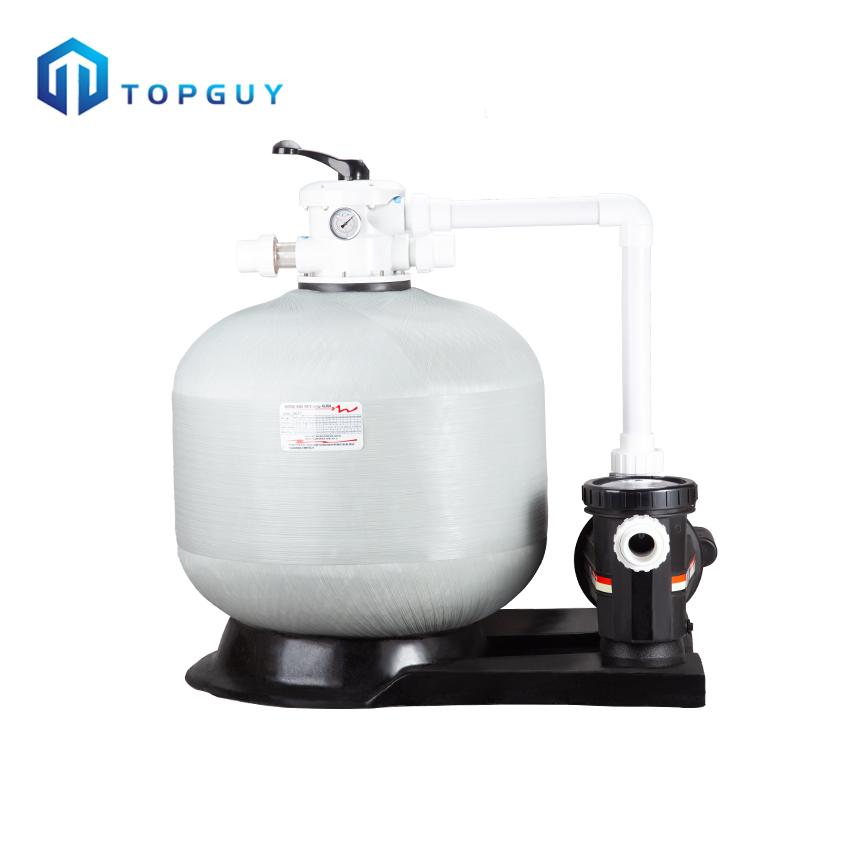

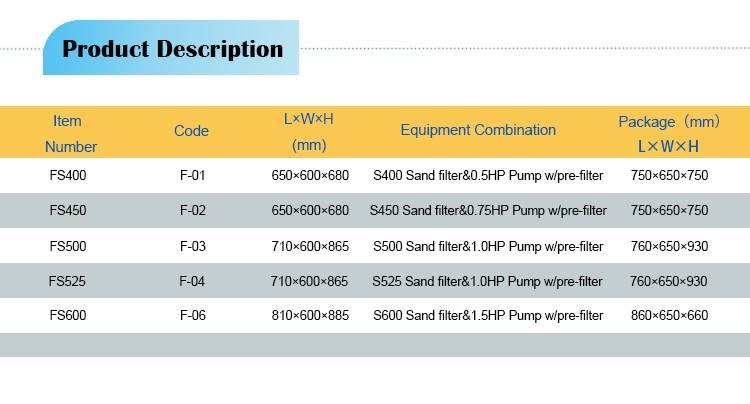

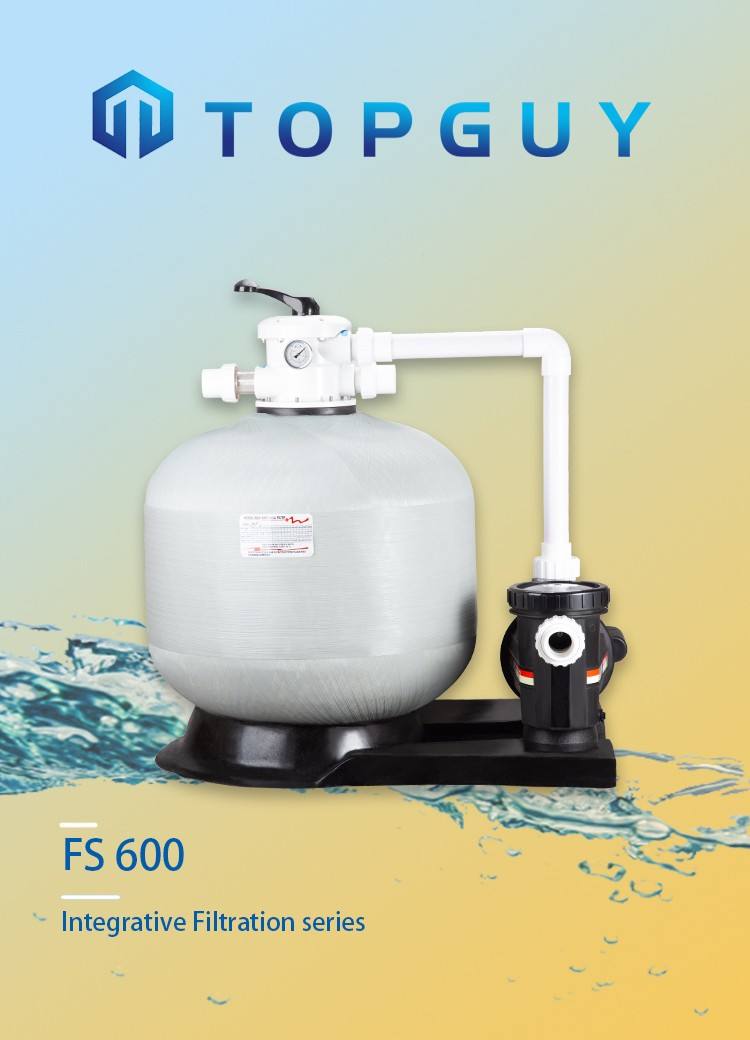

This filtration included S600 sand filter &1.5 HP pump w/pre filter ,the quotation is only for the S 600 sand filter .

Item No.	FS600	Payment Terms	T/T
Type	Intergrative Filtration	Price Item	EXW
Material	Fiberglass	Inlet	1.5 inches
Packing	Neutral	OEM	Acceptable
Diameter	600mm	Package	850670670MM

Products Show

More detail description:

FS series filters embody the latest in fibreglass winding technology. Micron fibreglass vessels consist of an inner shell of
fibreglass reinforced with multiple layers of continuous strands of fibreglass filaments.

Depth Filtration
FS series operates on the basis of “Depth Filtration”; dirt is driven through the filter bed and trapped in minute spaces between
the particles of filter media allowing the cleansed water to pass through the filter’s laterals and exit via the filter’s
Multiport valve.

Simple Maintenance
Cleaning the filter simply requires turning the filter’s Multiport lever from the “filter” position to the “backwash” position,
which reverses the flow of water in the filter, flushing the filter bed.

Reduced Water Flow Resistance
Conventional 24” / 600mm filters are equipped with a 40mm Multiport Valve. The FS series is equipped with a hydraulically
efficient 63mm Connected Port Multiport Valve to reduce the filter’s overall resistance to water flow.
The filter’s low water flow resistance, facilitates better performance from multi-speed and variable speed pumps.

Enhanced Water Clarity
A lower flow rate also has the added benefit of enhancing your pool’s filtration efficiency, greatly enhancing the clarity of yourswimming pool water.

Remarks :

For this FS sreies integrative filtration series：

Pump connector size : 2 inches
Sand filter connector size : 1.5 inches

In metric size：1.5’’= 50mm / 2’’= 63mm
In imperial size：1.5’’= 48mm / 2’’= 60mm

Advantages

About us

Packing & Delivery

Packing Details : Standard exported carton , 1 pcs/carton
Delivery Details : 15-20 days after comfirm the order

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes ,please contact us and leave your address and post code .

Q: What is your terms of payment ?

A: Payment
