A sparkling clean swimming pool is a joy, but keeping it that way requires consistent maintenance. One of the most critical components of your pool's circulation system is the filter. For many pool owners, a sand filter is the workhorse that keeps the water clear of debris. Understanding how to manage your swimming pool filter sand is key to a healthy and inviting pool.
This guide will walk you through everything you need to know. We'll cover how a sand filter swimming pool system works, when to clean it, and the step-by-step process for backwashing and deep cleaning. We'll also look at the different swimming pool sand filter parts and how to know when it's time to replace the sand entirely.
Before we dive into cleaning, let's understand the magic behind a sand filter. Your pool pump pulls water from the pool and pushes it into the top of the filter tank. This water then percolates down through a specially graded bed of swimming pool filter sand.
The sharp edges of the sand grains act as a sieve, trapping dirt, debris, hair, oils, and other microscopic particles. The clean, filtered water then flows out through laterals at the bottom of the tank and is returned to your pool. It’s a simple yet highly effective process that keeps your water crystal clear.

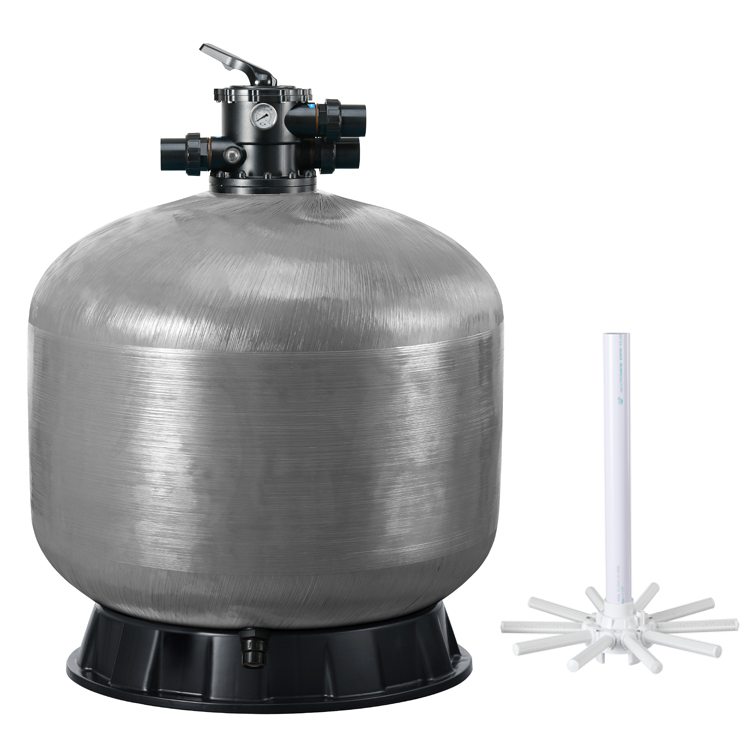

A typical sand filter consists of several key components working together. Knowing these parts helps you troubleshoot issues and perform maintenance correctly.
Part Name | Description |
|---|---|
Filter Tank | The main body that holds the sand and water. It's built to withstand high pressure. |
Multiport Valve | The control center of your filter. This valve allows you to switch between functions like FILTER, BACKWASH, RINSE, and WASTE. |
Pressure Gauge | A vital tool that shows the internal pressure of the filter tank. It's your primary indicator for when the filter needs cleaning. |
Standpipe | A central pipe inside the tank that distributes water over the sand bed and collects filtered water from the laterals. |
Laterals | A set of slotted pipes at the bottom of the tank. They allow clean water to exit while keeping the sand inside. |
When you inspect your system, pay close attention to the multiport valve and the pressure gauge, as these are the most important swimming pool sand filter parts for routine maintenance.
How do you know when your sand filter needs a clean? The answer is on your pressure gauge.
First, you need to establish a "clean" pressure reading. After you've backwashed your filter or installed new sand, run the pump and note the pressure reading on the gauge. This is your baseline, or "clean" PSI (pounds per square inch).
Over time, as the swimming pool filter sand traps dirt and debris, the space between the sand grains gets clogged. This obstruction causes the pressure inside the tank to rise.
The rule of thumb is to clean your filter when the pressure gauge reads 8-10 PSI above your clean, baseline pressure.
For example, if your clean pressure is 15 PSI, you should plan to backwash the filter when it reaches 23-25 PSI. Checking the gauge weekly is a good habit to ensure your filter operates efficiently.
The most common method for cleaning your sand filter swimming pool system is called backwashing. This process reverses the flow of water through the filter, flushing out the trapped dirt and debris to a waste line.
IMPORTANT: Always turn off the pool pump before changing the settings on your multiport valve. Moving the handle while the pump is running can damage the valve's gasket and cause leaks.
Turn Off the Pump: Go to your circuit breaker and switch off the power to the pool pump.
Attach the Backwash Hose: Connect your backwash hose to the WASTE or BACKWASH port on the multiport valve. Make sure the other end is placed in a safe area where dirty water can drain away, like a storm drain or a suitable spot in your yard (check local regulations first).
Set to BACKWASH: Press down on the multiport valve handle and turn it to the "BACKWASH" position.
Turn On the Pump: Switch the pump back on. Water will now flow backward through the filter, flushing debris out through the backwash hose.
Run for 2-5 Minutes: Let the backwashing process run for several minutes. You can often watch the water through a sight glass on the valve or observe the hose output. The water will start out cloudy and gradually become clear.
Turn Off the Pump: Once the water runs clear, turn off the pump again.
Set to RINSE: Push down the valve handle and turn it to the "RINSE" position. The rinse cycle resettles the swimming pool filter sand bed to prevent sand from returning to your pool.
Turn On the Pump: Switch the pump on and let it run for about 30-60 seconds.
Turn Off the Pump: Power down the pump one last time.
Return to FILTER: Set the multiport valve back to the "FILTER" position.
Restart the System: Turn the pump back on. Your system will now resume its normal filtering operation.
Note the New Pressure: Check the pressure gauge and write down the new, lower PSI. This is your new "clean" reading.
Backwashing removes loose dirt, but over time, oils, lotions, and minerals can cause the sand grains to clump together—a process called channeling. When this happens, water can bypass the sand, leading to poor filtration.
If you notice that your filter requires frequent backwashing or your pool water isn't as clear as it used to be, it might be time for a deep chemical clean. You can purchase a specialized sand filter cleaner that strips away greasy buildup.
However, even with regular cleaning, swimming pool filter sand loses its effectiveness. The sharp edges of the sand grains wear down over years of use, becoming smooth and less efficient at trapping particles.
Generally, you should replace the sand in your filter every 3 to 5 years.
Replacing the sand is a more involved job that requires emptying the tank, removing the old sand, inspecting the laterals for damage, and refilling it with the correct amount and type of new sand.
Here we address the most common question about filter maintenance.
Cleaning your sand filter primarily involves a process called backwashing. You should do this when the filter's pressure gauge reads 8-10 PSI above its normal clean level. The steps are simple:
Turn off the pool pump.
Set the multiport valve to "BACKWASH." Turn the pump on and let it run until the water runs clear (about 2-5 minutes). Turn the pump off. Set the valve to "RINSE" and run the pump for about one minute to resettle the sand. Turn the pump off again.
Return the valve to the "FILTER" setting and restart your pump for normal operation.
For more stubborn buildup, a chemical cleaner designed for sand filters can be used annually. The sand itself should be completely replaced every 3-5 years for optimal performance.
